ISM
Beam

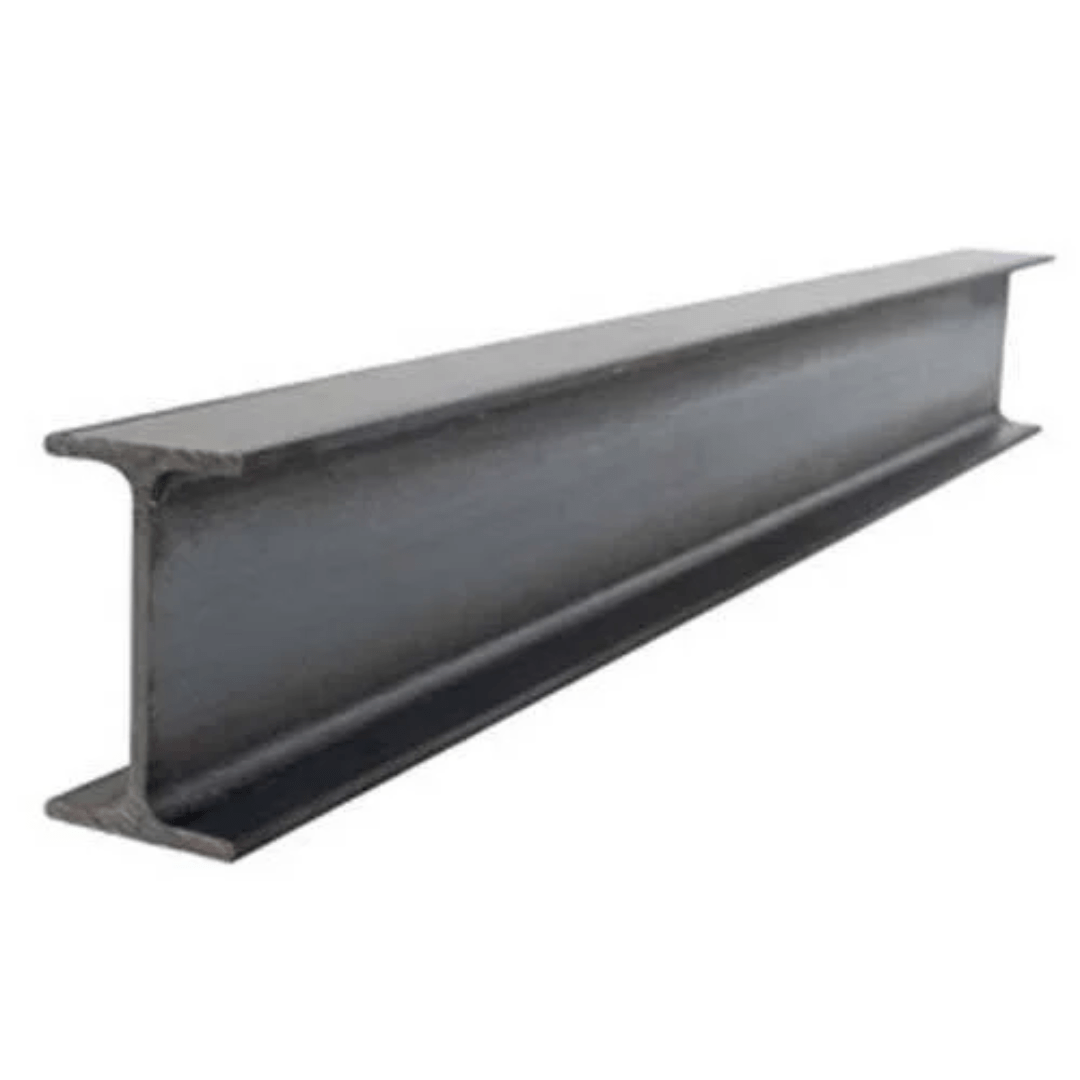

ISM Beams (Indian Standard Medium Beams), commonly referred to as I-beams or Universal Beams, are structural steel members designed with a characteristic "I" shape. They are widely used in construction and engineering projects due to their excellent load-bearing properties. ISM Beams are essential for providing structural support in both horizontal and vertical orientations, offering high strength while minimizing material usage.

Flanges: Two wide horizontal elements that provide stability and resistance to bending. Web: A vertical element connecting the two flanges, providing shear strength and carrying loads across the beam's length.

SECTIONSTANDARDMINIMUMMAXIMUMFLANGEWEBR1R2
WT./ MTR.WT. 2.5%WT. 2.5%THICK.THICK.
HB-116X1002322.42523.575108.5
HB-150X15027.126.42227.77795.484
HB-150X15030.629.83531.36598.484
HB-150X15034.633.73535.465911.884
HB-152X15237.136.17238.02711.97.911.73
HB-200X20040394197.894.5
HB-203X2035250.753.3138.915.57.6
HB-203X1525250.753.316.58.915.57.6
